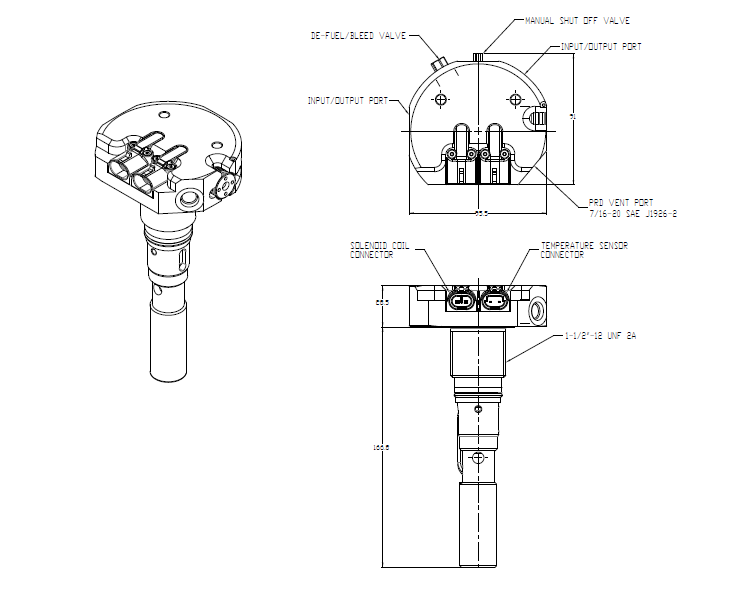

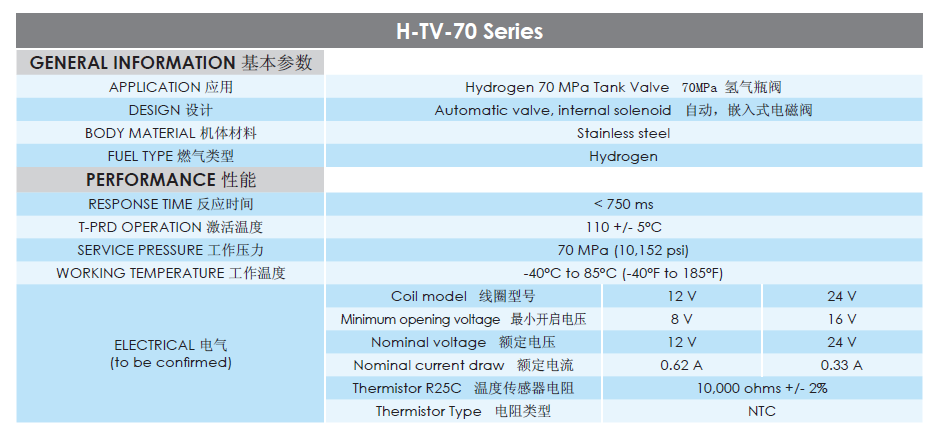

H-TV-70 Series

　　HEAVY DUTY 70 MPa CRASHWORTHY INTERNAL SOLENOID TANK VALVE

　　大流量70MPa 內置式防碰撞電磁瓶口閥

　　Key Features

　　700 bar (70 MPa) tank service pressure. Patented solenoid tank valve that mounts the coil and plunger inside the tank protecting it from any external impact and environmental exposure. Temperature sensor mounted inside the tank allows for fuel gauge correction or fuel dispenser feedback system. Tank valve also includes an integrated PRD along with manual shut off.

　　? Based on GFI’s successful family of internal solenoid tank valves

　　? The solenoid lock off is located inside the cylinder, providing real crash and environmental protection

　　? Pipe away T-PRD

　　? Internal temperature sensor

　　? Stainless steel body

　　? 12 V and 24 V solenoid coils available

　　? 700 Bar service pressure

　　主要特性

　　70MPa氫氣瓶口閥。具有專利技術的電磁瓶口閥把線圈和閥芯設計在氣瓶內部，這樣可以保護它們不受碰撞和外界環境的影響。溫度傳感器裝在氣瓶里面，可以用于氣量表數值的修正或者燃氣加氣機反饋系統。同時該瓶口閥也集成了手動切斷閥和壓力釋放閥。

　　? 基于GFI成功的內置電磁閥式瓶口閥設計經驗;

　　? 電磁切斷閥位于氣瓶內部，保護其不受碰撞和外界環境的影響;

　　? 集成溫度型壓力釋放閥;

　　? 集成溫度傳感器;

　　? 不銹鋼機體;

　　? 兼容12V或者24V系統;

　　? 最大支持700bar系統壓力。
